V31-GM-Q4
| Product Description |
|---|

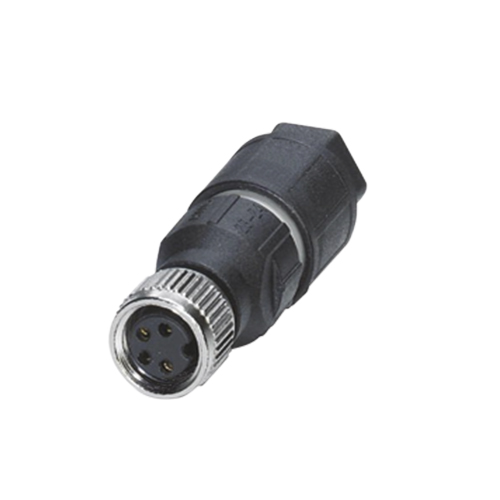

| Female cordset single-ended, M8, 4-pin, field attachable |
| General specifications | ||
|---|---|---|
| Number of pins | 4 | |
| Connection 1 | socket | |
| Construction type 1 | straight | |
| Threading 1 | M8 | |
| UL File Number | E191152 | |
| Electrical specifications | ||
| Operating voltage | max. 30 V AC/DC | |
| Operating current | max. 4 A | |
| Volume resistance | < 5 mΩ | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Degree of protection | EN 60529:2000 | |
| Standards | IEC 61076-2-104:2008 | |
| Approvals and certificates | ||
| UL approval | UL Recognized | |
| Maximum permissible operating voltage | max. 29 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 80 °C (-13 … 176 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Degree of protection | IP65/IP67 | |
| Connection | 1 x M8 socket, straight Insulation displacement connection for 0.25 … 0.5 mm2 |
|
| Material | ||
| Contacts | CuSn | |
| Contact surface | Ni/Au | |
| Body | PA 6 | |
| Slotted nut | Zinc diecast, nickel-plated | |
| Seal | NBR | |
| Core insulation | PVC/PE/PP | |
| Cable | ||
| Sheath diameter | 2.5 … 5 mm ± 0.2 mm | |
Classifications V31-GM-Q4
| System | Classcode |
|---|---|
| ECLASS 11.0 | 27440102 |
| ECLASS 10.0.1 | 27440102 |
| ECLASS 9.0 | 27440102 |
| ECLASS 8.0 | 27440104 |
| ECLASS 5.1 | 27279201 |
| ETIM 8.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
