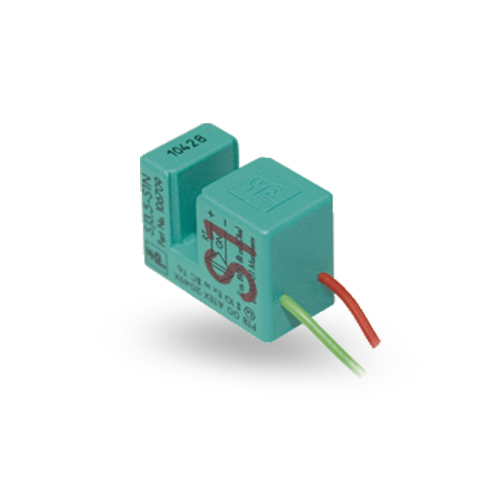

SJ3,5-S1N
Datasheet excerpt: Technical data of SJ3,5-S1N Pepperl Fuchs
| General specifications | ||
|---|---|---|
| Switching function | Normally open (NO) | |
| Output type | NAMUR with safety function | |
| Slot width | 3.5 mm | |
| Depth of immersion (lateral) | 5 … 7 typ. 6 mm | |
| Reference target | 10 x 7 x 0.3 mm3, Al | |
| Safety Integrity Level (SIL) | up to SIL3 acc. to IEC 61508 Danger! In safety-related applications the sensor must be operated with a qualified fail safe interface from Pepperl+Fuchs, such as KFD2-SH-EX1. Consider the “exida Functional Safety Assessment” document which is available on www.pepperl-fuchs.com as an integral part of this product’s documentation. |
|
| Output type | 2-wire | |
| Nominal ratings | ||
| Nominal voltage | 8.2 V (Ri approx. 1 kΩ) | |
| Switching frequency | 0 … 2500 Hz | |
| Hysteresis | with NAMUR switch amplifier: 0.09 mm (e. g. Pepperl+Fuchs KCD2-SR-Ex1.LB) with safety switch amplifier 0.05 mm (e. g. Pepperl+Fuchs KFD2-SH-Ex1) |
|
| Suitable for 2:1 technology | yes , with reverse polarity protection diode | |
| Rate of current rise | 2.1 mA / mm | |
| Current consumption | ||
| Measuring plate not detected | 0.2 … 1 mA | |
| Measuring plate detected | ≥ 3 mA | |
| Functional safety related parameters | ||
| Safety Integrity Level (SIL) | SIL 3 | |
| MTTFd | 11850 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| NAMUR | EN 60947-5-6:2000 IEC 60947-5-6:1999 |
|
| Standards | EN 60947-5-2:2007 EN 60947-5-2/A1:2012 IEC 60947-5-2:2007 IEC 60947-5-2 AMD 1:2012 |
|
Approvals and certificates |
||
| IECEx approval | ||
| Equipment protection level Ga | IECEx PTB 11.0092X | |
| Equipment protection level Gb | IECEx PTB 11.0092X | |
| Equipment protection level Da | IECEx PTB 11.0092X | |
| Equipment protection level Mb | IECEx PTB 11.0092X | |
| ATEX approval | ||
| Equipment protection level Ga | PTB 00 ATEX 2049 X | |
| Equipment protection level Gb | PTB 00 ATEX 2049 X | |
| Equipment protection level Da | PTB 00 ATEX 2049 X | |
| UL approval | cULus Listed, General Purpose | |
| Ordinary Location | E87056 | |
| Hazardous Location | E501628 | |
| Control drawing | 116-0454 | |
| CCC approval | ||
| Hazardous Location | 2020322315002308 | |
| NEPSI approval | ||
| NEPSI certificate | GYJ16.1392X | |
| Ambient conditions | ||
| Ambient temperature | -25 … 100 °C (-13 … 212 °F) | |
| Mechanical specifications | ||
| Connection type | flexible leads LiY | |
| Housing material | PBT | |
| Degree of protection | IP67 | |
| Cable | ||
| Cable diameter | 1.1 mm ± 0.1 mm | |
| Bending radius | > 10 x cable diameter | |
| Material | PVC | |
| Core cross section | 0.14 mm2 | |
| Length | 500 mm | |
| Note | only for non-ferrous metal Adjustable stop |
|
| General information | ||
| Use in the hazardous area | see instruction manuals | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 11.0 | 27270101 |
| ECLASS 10.0.1 | 27270101 |
| ECLASS 9.0 | 27270101 |
| ECLASS 8.0 | 27270101 |
| ECLASS 5.1 | 27270101 |
| ETIM 8.0 | EC002714 |
| ETIM 7.0 | EC002714 |
| ETIM 6.0 | EC002714 |
| ETIM 5.0 | EC002714 |
| UNSPSC 12.1 | 39121550 |
