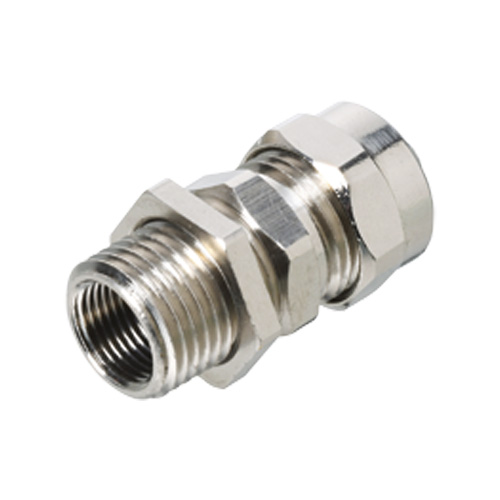

Sensor adapter CP-ADP-MS-1/4-M12 5pcs
Datasheet excerpt: Technical data of CP-ADP-MS-1/4-M12 5pcs
| Product Description | ||
|---|---|---|
| Sensor adapter for M12 sensors and 1/4″ flexible metal conduit | ||
| Mechanical specifications | ||
|---|---|---|
| External thread | ||
| Thread type | metric | |
| Thread size | M16 x 1.5 | |
| Internal thread | ||
| Thread type | metric | |
| Thread size | M12 x 1 | |
| Material | ||
| Screwed connection | brass, nickel-plated | |
| Slotted nut | brass | |
| Clamping ring | nickel-plated brass | |
| Mass | 37 g | |
| General information | ||
| Scope of delivery | 5 item(s) | |
| Supplementary information | observe mounting instructions | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 11.0 | 27273701 |
| ECLASS 10.0.1 | 27273701 |
| ECLASS 9.0 | 27273701 |
| ECLASS 8.0 | 27279202 |
| ECLASS 5.1 | 27279202 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
