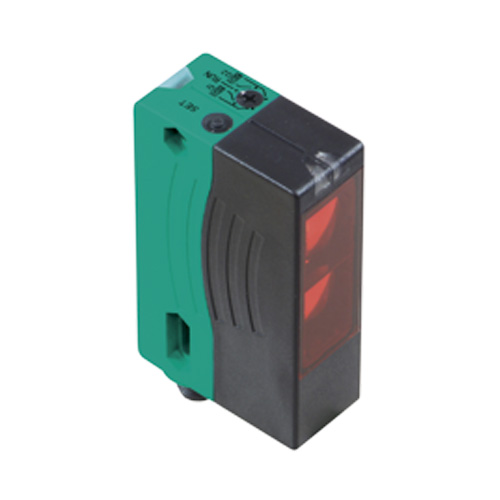

RL28-55-Z/49/76a/82b/116
Datasheet excerpt: Technical data of RL28-55-Z/49/76a/82b/116
| Product Description | ||
|---|---|---|
| Retroreflective sensor with polarization filter | ||
| General specifications | ||
|---|---|---|
| Effective detection range | 0 … 17 m | |
| Reflector distance | 0.05 … 17 m | |
| Threshold detection range | 21 m | |
| Reference target | H85-2 reflector | |
| Light source | LED | |
| Light type | modulated visible red light , 660 nm | |
| Polarization filter | yes | |
| Diameter of the light spot | approx. 290 mm at a distance of 17 m | |
| Angle of divergence | emitter 1.2° receiver 2° |
|
| Ambient light limit | 80000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 690 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 90 % | |
| Indicators/operating means | ||
| Operation indicator | LED green | |
| Function indicator | 2 LEDs yellow, light up when light beam is free, flash when falling short of the stability control, off when light beam is interrupted | |
| Control elements | sensitivity adjustment (Adjustment to < 25% of the effective operating range) , Light-on/dark-on changeover switch | |
| Electrical specifications | ||
| Operating voltage | 10 … 30 V DC | |
| Ripple | 10 % | |
| No-load supply current | ≤ 40 mA | |
| Input | ||
| Test input | emitter deactivation at +UB | |
| Output | ||
| Pre-fault indication output | 1 PNP, inactive when falling short of the stability control for 10;s immediately inactive if 4 light beam interruptions take place |
|
| Switching type | light/dark on, switchable (selectable, light/dark switching is only activated if the receiver has ‘dark on’ selected.) | |
| Signal output | 1 NPN, 1 PNP synchronized-switching, short-circuit protected, reverse polarity protected , open collectors | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 200 mA | |
| Switching frequency | 1000 Hz | |
| Response time | 0.5 ms | |
| Timer function | ON delay (GAN), OFF delay (GAB), one shot (IAB), ON delay-one shot (GAN-IAB), ON delay-OFF delay (GAN-GAB), programmable adjustment interval 0.02 s … 1 s |
|
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| Protection class | II, rated voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 Caution! The protection class 2 is only valid when the terminal compartment is closed. |
|
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 | |
| Ambient conditions | ||
| Ambient temperature | -40 … 60 °C (-40 … 140 °F) | |
| Storage temperature | -40 … 75 °C (-40 … 167 °F) | |
| Mechanical specifications | ||
| Housing width | 25.8 mm | |
| Housing height | 88 mm | |
| Housing depth | 65.5 mm | |
| Degree of protection | IP67 | |
| Connection | terminal compartment with 8 spring-loaded terminals for wire cross section 0.5 … 1.5 mm2, insulation stripping 7.5 … 8.5 mm, M16 x 1.5 cable gland | |
| Material | ||
| Housing | Plastic ABS | |
| Optical face | plastic | |
| Mass | approx. 112 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 11.0 | 27270902 |
| ECLASS 10.0.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 5.1 | 27270902 |
| ETIM 8.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 5.0 | EC002717 |
| UNSPSC 12.1 | 39121528 |
