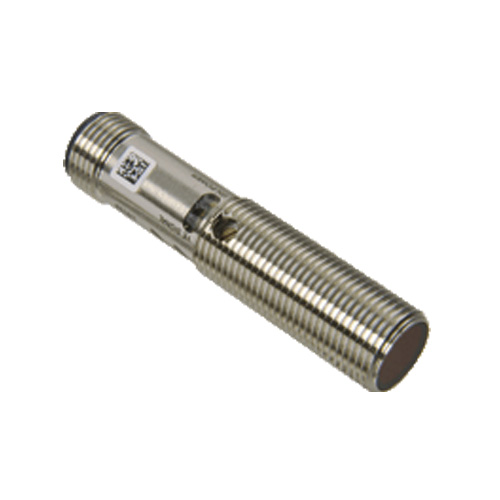

OBR2500-12GM40-E5-V1
Datasheet excerpt: Technical data of OBR2500-12GM40-E5-V1
| Product Description | ||
|---|---|---|
| Retroreflective sensor with polarization filter, M12 threaded housing design, metal housing, front optical face, 5 m detection range, red light, light/dark on, 1 PNP output, M12 plug | ||
| General specifications | ||
|---|---|---|
| Effective detection range | 0 … 2500 mm | |
| Reflector distance | 50 … 2500 mm | |
| Threshold detection range | 3000 mm | |
| Reference target | H50 reflector | |
| Light source | LED | |
| Light type | red , 640 nm | |
| Polarization filter | yes | |
| Angle deviation | +/- 2 ° | |
| Diameter of the light spot | approx. 150 mm at a distance of 2500 mm | |
| Angle of divergence | approx. 3.5 ° | |
| Optical face | frontal | |
| Ambient light limit | EN 60947-5-2 20000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 800 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green: Power on | |
| Function indicator | LED yellow: lights up when receiving the light beam ; flashes when falling short of the stability control; OFF when light beam is interrupted | |
| Control elements | sensitivity adjustment | |
| Electrical specifications | ||
| Operating voltage | 10 … 30 V DC , class 2 | |
| Ripple | 10 % | |
| No-load supply current | ≤ 15 mA | |
| Input | ||
| Control input | light on +UB dark on: 0 V |
|
| Output | ||
| Switching type | light/dark on electrically switchable | |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA , resistive load | |
| Voltage drop | ≤ 2 V | |
| Switching frequency | ≤ 1000 Hz | |
| Response time | 0.5 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | UL 508 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source, Type 1 enclosure | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Approvals | CE, cULus Listed 57M3 (Only in association with UL Class 2 power supply; Type 1 enclosure) | |
| Ambient conditions | ||
| Ambient temperature | -30 … 60 °C (-22 … 140 °F) | |
| Storage temperature | -40 … 70 °C (-40 … 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | 4-pin, M12 x 1 connector | |
| Material | ||
| Housing | brass, nickel-plated | |
| Optical face | PMMA | |
| Mass | approx. 15 g | |
