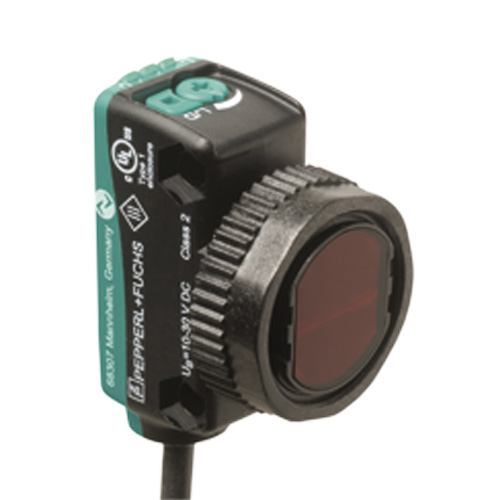

OBR12M-R103-2EP-IO-L
Datasheet excerpt: Technical data of OBR12M-R103-2EP-IO-L
| Product Description | ||
|---|---|---|
| Laser retroreflective sensor | ||
| General specifications | ||
|---|---|---|
| Effective detection range | 0 … 12 m | |
| Reflector distance | 0.25 … 12 m | |
| Threshold detection range | 15 m | |
| Reference target | H50 reflector | |
| Light source | laser diode | |
| Light type | modulated visible red light | |
| Polarization filter | yes | |
| Laser nominal ratings | ||
| Note | LASER LIGHT , DO NOT STARE INTO BEAM | |
| Laser class | 1 | |
| Wave length | 680 nm | |
| Beam divergence | > 5 mrad d63 < 2 mm in the range of 250 mm … 750 mm | |
| Pulse length | 1.6 µs | |
| Repetition rate | max. 17.6 kHz | |
| max. pulse energy | 9.6 nJ | |
| Diameter of the light spot | approx. 30 mm at a distance of 12 m | |
| Angle of divergence | approx. 0.3 ° | |
| Ambient light limit | EN 60947-5-2 | |
| Functional safety related parameters | ||
| MTTFd | 672 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green: constantly on – power on flashing (4Hz) – short circuit flashing with short break (1 Hz) – IO-Link mode |
|
| Function indicator | Yellow LED: Permanently lit – light path clear Permanently off – object detected Flashing (4 Hz) – insufficient operating reserve |
|
| Control elements | Light-on/dark-on changeover switch | |
| Control elements | sensitivity adjustment | |
| Parameterization indicator | IO link communication: green LED goes out briefly (1 Hz) | |
| Electrical specifications | ||
| Operating voltage | 10 … 30 V DC | |
| Ripple | max. 10 % | |
| No-load supply current | < 20 mA at 24 V supply voltage | |
| Protection class | III | |
| Interface | ||
| Interface type | IO-Link ( via C/Q = pin 4 ) | |
| Transfer rate | COM 2 (38.4 kBaud) | |
| IO-Link Revision | 1.1 | |
| Min. cycle time | 2.3 ms | |
| Process data width | Process data input 2 Bit Process data output 2 Bit |
|
| SIO mode support | yes | |
| Device ID | 0x110205 (1114629) | |
| Compatible master port type | A | |
| Output | ||
| Switching type | The switching type of the sensor is adjustable. The default setting is: C/Q – BK: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link /Q – WH: NPN normally closed / light-on, PNP normally open / dark-on |
|
| Signal output | 2 push-pull (4 in 1)outputs, short-circuit protected, reverse polarity protected, overvoltage protected | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA , resistive load | |
| Usage category | DC-12 and DC-13 | |
| Voltage drop | ≤ 1.5 V DC | |
| Switching frequency | 2000 Hz | |
| Response time | 250 µs | |
| Conformity | ||
| Communication interface | IEC 61131-9 | |
| Product standard | EN 60947-5-2 | |
| Laser safety | EN 60825-1:2014 | |
| Approvals and certificates | ||
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 | |
| FDA approval | IEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 | |
| Ambient conditions | ||
| Ambient temperature | -40 … 60 °C (-40 … 140 °F) , fixed cable -25 … 60 °C (-13 … 140 °F) , movable cable not appropriate for conveyor chains |
|
| Storage temperature | -40 … 70 °C (-40 … 158 °F) | |
| Mechanical specifications | ||
| Housing width | 15 mm | |
| Housing height | 36.5 mm | |
| Housing depth | 26.7 mm | |
| Degree of protection | IP67 / IP69 / IP69K | |
| Connection | 2 m fixed cable | |
| Material | ||
| Housing | PC (Polycarbonate) | |
| Optical face | PMMA | |
| Mass | approx. 38 g | |
| Cable length | 2 m | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 11.0 | 27270902 |
| ECLASS 10.0.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 5.1 | 27270902 |
| ETIM 8.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 5.0 | EC002717 |
| UNSPSC 12.1 | 39121528 |
