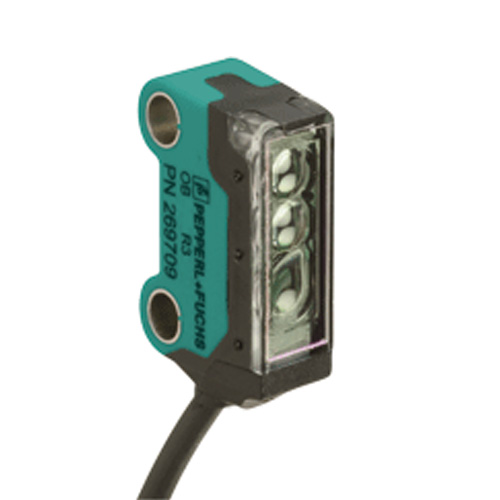

OBR1000-R3-E0
Datasheet excerpt: Technical data of OBR1000-R3-E0
| Product Description | ||
|---|---|---|
| Retroreflective sensor for standard applications, miniature design, polarization filter, 1000 mm detection range, red light, dark on, NPN output, fixed cable | ||
| General specifications | ||
|---|---|---|
| Effective detection range | 0 … 1 m | |
| Reflector distance | 40 … 1000 mm | |
| Threshold detection range | 1.4 m | |
| Reference target | H40 reflector | |
| Light source | LED | |
| Light type | modulated visible red light , 630 nm | |
| Polarization filter | yes | |
| Angle deviation | approx. 2 ° | |
| Diameter of the light spot | approx. 60 mm at a distance of 800 mm | |
| Angle of divergence | approx. 2 ° | |
| Optical face | frontal | |
| Ambient light limit | EN 60947-5-2 : 30000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 800 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green, statically lit Power on , short-circuit : LED green flashing (approx. 4 Hz) | |
| Function indicator | LED yellow: lights up when receiving the light beam ; flashes when falling short of the stability control; OFF when light beam is interrupted | |
| Electrical specifications | ||
| Operating voltage | 10 … 30 V DC , class 2 | |
| No-load supply current | < 10 mA | |
| Input | ||
| Test input | Test of switching function at 0 V | |
| Output | ||
| Switching type | NO contact / dark on | |
| Signal output | 1 NPN output, short-circuit protected, reverse polarity protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 50 mA , resistive load | |
| Voltage drop | ≤ 1.5 V DC | |
| Switching frequency | approx. 800 Hz | |
| Response time | 600 µs | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| UL approval | cULus Recognized, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 60 °C (-13 … 140 °F) | |
| Storage temperature | -30 … 70 °C (-22 … 158 °F) | |
| Mechanical specifications | ||
| Housing width | 7.5 mm | |
| Housing height | 26 mm | |
| Housing depth | 13.8 mm | |
| Degree of protection | IP67 | |
| Connection | 2 m fixed cable | |
| Material | ||
| Housing | PC/ABS and TPU | |
| Optical face | glass | |
| Cable | PUR | |
| Mass | approx. 20 g | |
| Cable length | 2 m | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 11.0 | 27270902 |
| ECLASS 10.0.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 5.1 | 27270902 |
| ETIM 8.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 5.0 | EC002717 |
| UNSPSC 12.1 | 39121528 |
