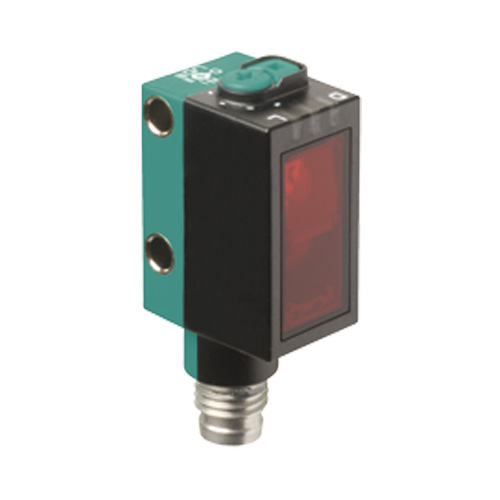

OBG5000-R101-2EP-IO-V31
Datasheet excerpt: Technical data of OBG5000-R101-2EP-IO-V31
| Product Description | ||
|---|---|---|
| Retroreflective sensor with polarization filter for clear object detection | ||
| General specifications | ||
|---|---|---|
| Effective detection range | 0 … 3.5 m in TEACH mode ; 0 … 5 m at switch position “N” | |
| Reflector distance | 0 … 3.5 m in TEACH mode ; 0 … 5 m at switch position “N” | |
| Threshold detection range | 6 m | |
| Reference target | H85-2 reflector | |
| Light source | LED | |
| Light type | modulated visible red light | |
| LED risk group labelling | exempt group | |
| Diameter of the light spot | approx. 170 mm at a distance of 3.5 m | |
| Angle of divergence | approx. 5 ° | |
| Ambient light limit | EN 60947-5-2 | |
| Functional safety related parameters | ||
| MTTFd | 600 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green: constantly on – power on flashing (4Hz) – short circuit flashing with short break (1 Hz) – IO-Link mode |
|
| Function indicator | Yellow LED: Permanently lit – light path clear Permanently off – object detected Flashing (4 Hz) – insufficient operating reserve |
|
| Control elements | Teach-In key | |
| Control elements | 5-step rotary switch for operating modes selection | |
| Contrast detection levels | 10 % – clean, water filled PET bottles 18 % – clear glass bottles 40 % – colored glass or opaque materials Adjustable via rotary switch |
|
| Electrical specifications | ||
| Operating voltage | 10 … 30 V DC | |
| Ripple | max. 10 % | |
| No-load supply current | < 25 mA at 24 V supply voltage | |
| Protection class | III | |
| Interface | ||
| Interface type | IO-Link ( via C/Q = pin 4 ) | |
| Transfer rate | COM 2 (38.4 kBaud) | |
| IO-Link Revision | 1.1 | |
| Min. cycle time | 2.3 ms | |
| Process data width | Process data input 2 Bit Process data output 2 Bit |
|
| SIO mode support | yes | |
| Device ID | 0x110A01 (1116673) | |
| Compatible master port type | A | |
| Output | ||
| Switching type | The switching type of the sensor is adjustable. The default setting is: C/Q – Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link /Q – Pin2: NPN normally closed / light-on, PNP normally open / dark-on |
|
| Signal output | 2 push-pull (4 in 1)outputs, short-circuit protected, reverse polarity protected, overvoltage protected | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA , resistive load | |
| Usage category | DC-12 and DC-13 | |
| Voltage drop | ≤ 1.5 V DC | |
| Switching frequency | 500 Hz | |
| Response time | 1 ms | |
| Conformity | ||
| Communication interface | IEC 61131-9 | |
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 | |
| Ambient conditions | ||
| Ambient temperature | -20 … 60 °C (-4 … 140 °F) | |
| Storage temperature | -40 … 70 °C (-40 … 158 °F) | |
| Mechanical specifications | ||
| Housing width | 13.9 mm | |
| Housing height | 41.4 mm | |
| Housing depth | 18.3 mm | |
| Degree of protection | IP67 / IP69 / IP69K | |
| Connection | M8 x 1 connector, 4-pin | |
| Material | ||
| Housing | PC (Polycarbonate) | |
| Optical face | PMMA | |
| Mass | approx. 10 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 11.0 | 27270902 |
| ECLASS 10.0.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 5.1 | 27270902 |
| ETIM 8.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 5.0 | EC002717 |
| UNSPSC 12.1 | 39121528 |
