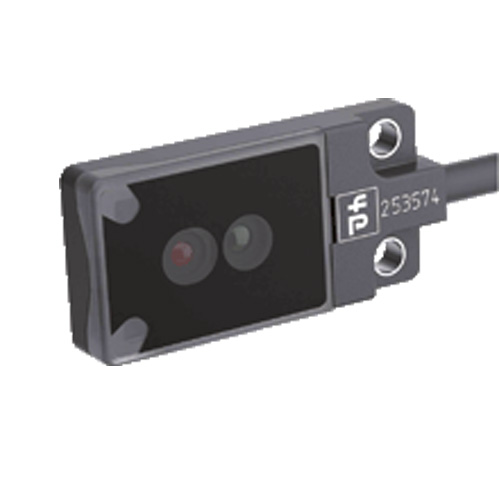

OBE1500-R2F-SE0-L
Datasheet excerpt: Technical data of OBE1500-R2F-SE0-L
| Product Description | ||
|---|---|---|
| Thru-beam sensor, flat design, space-saving M2 mounting, 1500 mm detection range, red light, dark on, NPN output, fixed cable | ||
| System components | ||
|---|---|---|
| Emitter | OBE1500-R2F-S-L | |
| Receiver | OBE1500-R2F-E0-L | |
| General specifications | ||
| Effective detection range | 0 … 1500 mm | |
| Threshold detection range | 2100 mm | |
| Light source | LASER LIGHT | |
| Light type | modulated visible red light , 680 nm | |
| Laser nominal ratings | ||
| Note | LASER LIGHT , DO NOT STARE INTO BEAM | |
| Laser class | 1 | |
| Wave length | 680 nm | |
| Beam divergence | > 5 mrad | |
| Pulse length | approx. 3 µs | |
| Repetition rate | approx. 16.6 kHz | |
| max. pulse energy | 8 nJ | |
| Angle deviation | approx. 0.5 ° | |
| Object size | typ. starts from 0.7 mm ; typ. from 0.3 mm (after teach-in) | |
| Diameter of the light spot | approx. 20 mm at a distance of 1.5 m | |
| Angle of divergence | approx. 1 ° | |
| Optical face | frontal | |
| Ambient light limit | EN 60947-5-2 : 25000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 806 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green, statically lit Power on , short-circuit : LED green flashing (approx. 4 Hz) | |
| Function indicator | Receiver: LED yellow, lights up when light beam is free, flashes when falling short of the stability control ; OFF when light beam is interrupted | |
| Electrical specifications | ||
| Operating voltage | 12 … 24 V | |
| No-load supply current | Emitter: ≤ 10 mA Receiver: ≤ 8 mA |
|
| Protection class | III | |
| Input | ||
| Test input | Test of switching function at 0 V | |
| Switching threshold | Teach-In input | |
| Output | ||
| Switching type | NO contact / dark on | |
| Signal output | 1 NPN output, short-circuit protected, reverse polarity protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 50 mA , resistive load | |
| Voltage drop | ≤ 1.5 V DC | |
| Switching frequency | approx. 2 kHz | |
| Response time | 250 µs | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Laser safety | EN 60825-1:2007 | |
| Approvals and certificates | ||
| UL approval | E87056 , cULus Recognized, Class 2 Power Source | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| FDA approval | IEC 60825-1:2007 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 | |
| Ambient conditions | ||
| Ambient temperature | -10 … 60 °C (14 … 140 °F) | |
| Storage temperature | -20 … 70 °C (-4 … 158 °F) | |
| Mechanical specifications | ||
| Housing width | 12 mm | |
| Housing height | 25.5 mm | |
| Housing depth | 4.1 mm | |
| Degree of protection | IP67 | |
| Connection | 2 m fixed cable | |
| Material | ||
| Housing | PC (Polycarbonate) and Stainless steel | |
| Optical face | PMMA | |
| Cable | PUR | |
| Mass | approx. 20 g Per sensor | |
| Tightening torque, fastening screws | 0.25 Nm | |
| Cable length | 2 m | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 11.0 | 27270901 |
| ECLASS 10.0.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 5.1 | 27270901 |
| ETIM 8.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 5.0 | EC002716 |
| UNSPSC 12.1 | 39121528 |
