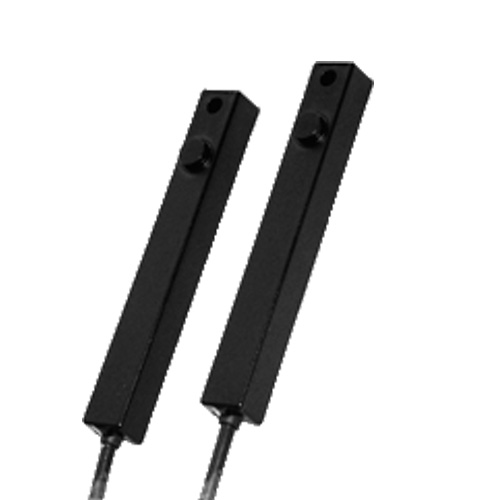

ML29-P/25/102/115
Bảng thông số kỹ thuật của cảm biến ML29-P/25/102/115
| Product Description | ||
|---|---|---|
| Single-beam miniature sensor, ideal for installing in frames or door profiles | ||
| System components | ||
|---|---|---|
| Emitter | ML29-T/115 | |
| Receiver | ML29-R/25/102/115 | |
| General specifications | ||
| Effective detection range | 0 … 6 m | |
| Threshold detection range | 8.5 m | |
| Light source | IRED | |
| Light type | modulated infrared light | |
| Angle of divergence | +/- 8 ° | |
| Optical face | lateral | |
| Ambient light limit | 40000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 880 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Function indicator | LED red in receiver : lights up when receiving the light beam | |
| Electrical specifications | ||
| Operating voltage | 11 … 30 V DC | |
| No-load supply current | Emitter: ≤ 25 mA Receiver: ≤ 10 mA |
|
| Input | ||
| Test input | Test: Transmitter switches off at +UB ≤ 5 V DC | |
| Output | ||
| Switching type | light-on | |
| Signal output | 1 NPN output, short-circuit protected, reverse polarity protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 0.1 A | |
| Switching frequency | 100 Hz | |
| Response time | 5 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN 61000-6-2, EN 61000-6-3 | |
| Approvals and certificates | ||
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -20 … 60 °C (-4 … 140 °F) | |
| Storage temperature | -20 … 75 °C (-4 … 167 °F) | |
| Relative humidity | 90 % , noncondensing | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | 6 m fixed cable | |
| Material | ||
| Housing | PMMA , black | |
| Optical face | Plastic pane | |
| Mass | per device 12 g | |
Phân loại
| System | Classcode |
|---|---|
| ECLASS 11.0 | 27270901 |
| ECLASS 10.0.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 5.1 | 27270901 |
| ETIM 8.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 5.0 | EC002716 |
| UNSPSC 12.1 | 39121528 |
