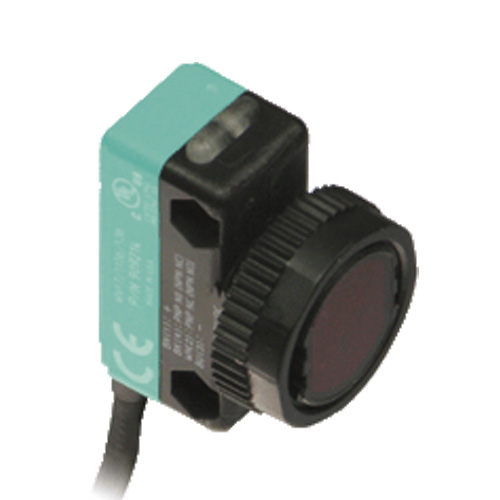

ML17-54/115/136
Datasheet excerpt: Technical data of ML17-54/115/136
| Product Description | ||
|---|---|---|
| Retroreflective sensor with polarization filter | ||
| General specifications | ||
|---|---|---|
| Effective detection range | 0 … 3.5 m | |
| Reflector distance | 50 … 3500 mm | |
| Threshold detection range | 5 m | |
| Reference target | FE-RR1 reflector | |
| Light source | LED | |
| Light type | modulated visible red light , 626 nm | |
| Polarization filter | yes | |
| Ambient light limit | ≤ 10000 Lux | |
| Indicators/operating means | ||
| Operation indicator | LED green | |
| Function indicator | LED yellow, lights up with receiver lit | |
| Control elements | sensitivity adjustment | |
| Electrical specifications | ||
| Operating voltage | 10 … 30 V DC , class 2 | |
| Ripple | max. 10 % | |
| No-load supply current | < 25 mA | |
| Operating current | 100 mA max per output | |
| Time delay before availability | ≤ 200 ms | |
| Output | ||
| Switching type | light/dark on | |
| Signal output | 2 push-pull (4 in 1)outputs, short-circuit protected, reverse polarity protected, overvoltage protected | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Voltage drop | ≤ 2 V DC | |
| Switching frequency | 500 Hz | |
| Response time | ≤ 1 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| UL approval | cULus | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -20 … 55 °C (-4 … 131 °F) | |
| Storage temperature | -20 … 70 °C (-4 … 158 °F) | |
| Mechanical specifications | ||
| Housing width | 15 mm | |
| Housing height | 34.5 mm | |
| Degree of protection | IP67 | |
| Connection | 2 m fixed cable | |
| Material | ||
| Housing | ABS | |
| Optical face | Acrylic | |
| Mass | approx. 40 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 11.0 | 27270902 |
| ECLASS 10.0.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 5.1 | 27270902 |
| ETIM 8.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 5.0 | EC002717 |
| UNSPSC 12.1 | 39121528 |
