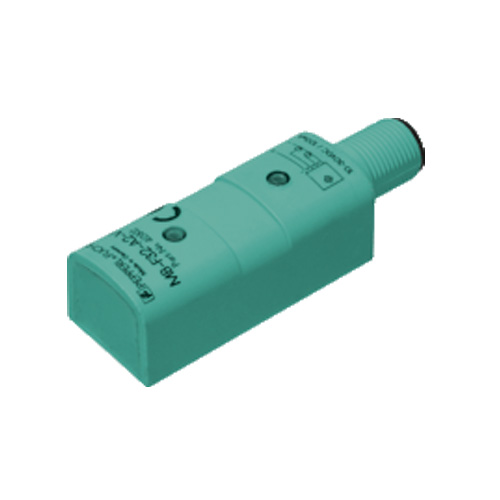

MB-F32-A2-V1
Datasheet excerpt: Technical data of MB-F32-A2-V1
| General specifications | ||
|---|---|---|
| Switching function | complementary | |
| Output type | PNP | |
| Installation | on the cylinder | |
| Output polarity | DC | |
| Switching range | typ. 50 mm | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V DC | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | ≤ 1.5 V | |
| Operating current | 0 … 100 mA | |
| No-load supply current | ≤ 30 mA | |
| Functional safety related parameters | ||
| MTTFd | 739 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| LED indicator | red: switching state output 1 yellow: switching state output 2 |
|
| Approvals and certificates | ||
| EAC conformity | TR CU 020/2011 | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 85 °C (-13 … 185 °F) | |
| Storage temperature | -40 … 85 °C (-40 … 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | Polyamide (PA) | |
| Sensing face | Polyamide (PA) | |
| Degree of protection | IP67 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 11.0 | 27270104 |
| ECLASS 10.0.1 | 27270104 |
| ECLASS 9.0 | 27270104 |
| ECLASS 8.0 | 27270104 |
| ECLASS 5.1 | 27270104 |
| ETIM 8.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 5.0 | EC002544 |
| UNSPSC 12.1 | 39121550 |
