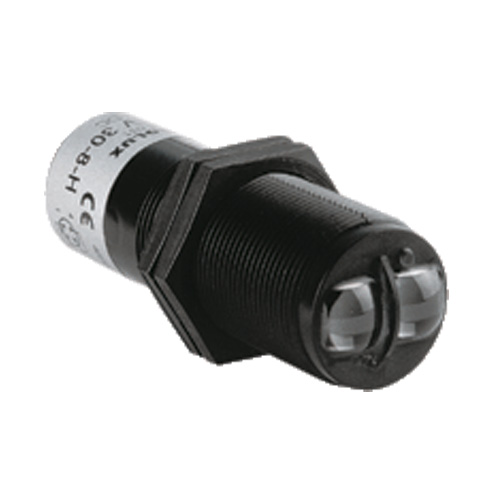

LV30-8-2000-2372
Datasheet excerpt: Technical data of GLV30-8-2000-2372
| Product Description | ||
|---|---|---|
| Diffuse mode sensor | ||
| General specifications | ||
|---|---|---|
| Detection range | 100 … 2500 mm | |
| Adjustment range | 750 … 2500 mm | |
| Light source | IRED | |
| Light type | modulated infrared light | |
| Diameter of the light spot | approx. 450 mm at a distance of 2000 mm | |
| Angle of divergence | ± 7 ° | |
| Ambient light limit | 30000 Lux | |
| Indicators/operating means | ||
| Function indicator | LED yellow, lights up if receiver is not lit | |
| Control elements | Sensing range adjuster | |
| Electrical specifications | ||
| Operating voltage | 24 V DC ± 20 % | |
| Ripple | 10 % | |
| No-load supply current | 30 mA | |
| Output | ||
| Switching type | dark on | |
| Signal output | 1 PNP, short-circuit protected, reverse polarity protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 200 mA | |
| Switching frequency | 35 Hz | |
| Response time | 10 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Approvals | CE | |
| Ambient conditions | ||
| Ambient temperature | -20 … 60 °C (-4 … 140 °F) | |
| Storage temperature | -20 … 75 °C (-4 … 167 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | Plastic connector M12 x 1, 4-pin | |
| Material | ||
| Housing | ABS | |
| Optical face | plastic lenses | |
| Mass | approx. 70 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 11.0 | 27270903 |
| ECLASS 10.0.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 5.1 | 27270903 |
| ETIM 8.0 | EC001821 |
| ETIM 7.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 5.0 | EC001821 |
| UNSPSC 12.1 | 39121528 |
