GD18/GV18/115/120
Datasheet excerpt: Technical data of GD18/GV18/115/120
| Product Description | ||
|---|---|---|

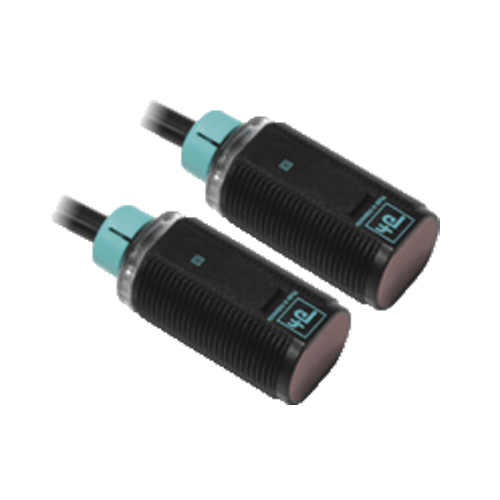

| Thru-beam sensor, M18 threaded housing design, plastic housing, front optical face, 20 m detection range, red light, light/dark on, DC version, 2 PNP outputs, fixed cable | ||
| System components | ||
|---|---|---|
| Emitter | GD18/115 | |
| Receiver | GV18/115/120 | |
| General specifications | ||
| Effective detection range | 0 … 20 m | |
| Threshold detection range | 25 m | |
| Light source | LED | |
| Light type | modulated visible red light , 640 nm | |
| Diameter of the light spot | approx. 1300 mm at 25 m | |
| Angle of divergence | approx. 3 ° | |
| Optical face | frontal | |
| Ambient light limit | 30000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 630 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green, statically lit Power on | |
| Function indicator | Receiver: LED yellow, lights up when light beam is free, flashes when falling short of the stability control ; OFF when light beam is interrupted | |
| Electrical specifications | ||
| Operating voltage | 10 … 30 V DC | |
| No-load supply current | < 20 mA | |
| Output | ||
| Switching type | light/dark on | |
| Signal output | 2 PNP, complementary, short-circuit protected, open collectors | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Voltage drop | ≤ 1.5 V DC | |
| Switching frequency | 500 Hz | |
| Response time | ≤ 1 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| Protection class | II, Rated insulation voltage ≤ 50 V AC with pollution degree 1-2 according to IEC 60664-1 | |
| UL approval | cULus Listed, Class 2 Power Source, Type 1 enclosure | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 60 °C (-13 … 140 °F) | |
| Storage temperature | -40 … 70 °C (-40 … 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | 2 m fixed cable | |
| Material | ||
| Housing | PC | |
| Optical face | PMMA | |
| Mass | approx. 75 g per device | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 11.0 | 27270901 |
| ECLASS 10.0.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 5.1 | 27270901 |
| ETIM 8.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 5.0 | EC002716 |
| UNSPSC 12.1 | 39121528 |
