GA18-S/GK18-S/59/161/166
Bảng thông số kỹ thuật của cảm biến GA18-S/GK18-S/59/161/166
| Product Description | ||
|---|---|---|

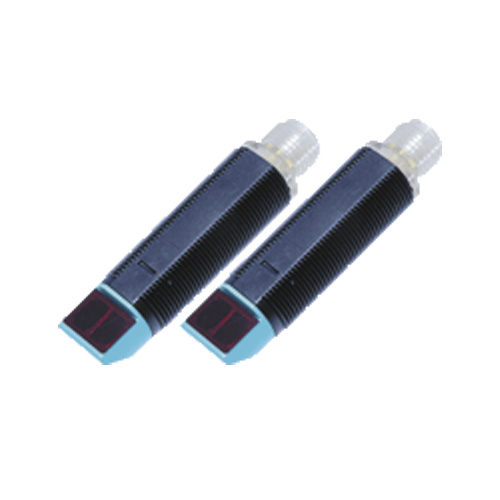

| Thru-beam sensor, M18 threaded housing design, plastic housing, side optical face, 12 m detection range, red light, dark on, AC/DC version, NPN-FET output, micro plug | ||
| System components | ||
|---|---|---|
| Emitter | GA18-S/166 | |
| Receiver | GK18-S/59/161/166 | |
| General specifications | ||
| Effective detection range | 0 … 12 m | |
| Threshold detection range | 17.5 m | |
| Light source | LED | |
| Light type | modulated visible red light , 640 nm | |
| Diameter of the light spot | approx. 650 mm at 17.5 m | |
| Angle of divergence | approx. 2 ° | |
| Optical face | lateral | |
| Ambient light limit | 30000 Lux | |
| Accessories provided | Mounting aids | |
| Indicators/operating means | ||
| Operation indicator | LED green, statically lit Power on | |
| Function indicator | Receiver: LED yellow, lights up when light beam is free, flashes when falling short of the stability control ; OFF when light beam is interrupted | |
| Electrical specifications | ||
| Operating voltage | 20 … 250 V AC/DC | |
| No-load supply current | < 2.5 mA per device | |
| Output | ||
| Switching type | dark on | |
| Signal output | N-channel MOSFET, short circuit protected | |
| Switching voltage | max. 250 V AC/DC | |
| Switching current | max. 200 mA | |
| Voltage drop | ≤ 3.5 V AC/DC | |
| Switching frequency | 50 Hz | |
| Response time | ≤ 10 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | UL 508 | |
| Approvals and certificates | ||
| EAC conformity | TR CU 020/2011 TR CU 004/2011 |
|
| Protection class | II, rated insulation voltage ≤ 250 V AC with pollution degree 1-2 according to IEC 60664-1 | |
| UL approval | cULus Listed, Type 1 enclosure | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -20 … 60 °C (-4 … 140 °F) | |
| Storage temperature | -40 … 70 °C (-40 … 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | Micro AC connector, 1/2″ V124 ; 4-pin | |
| Material | ||
| Housing | ABS / PBT | |
| Optical face | PMMA | |
| Mass | approx. 10 g per device | |
Phân loại
| System | Classcode |
|---|---|
| ECLASS 11.0 | 27270901 |
| ECLASS 10.0.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 5.1 | 27270901 |
| ETIM 8.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 5.0 | EC002716 |
| UNSPSC 12.1 | 39121528 |
