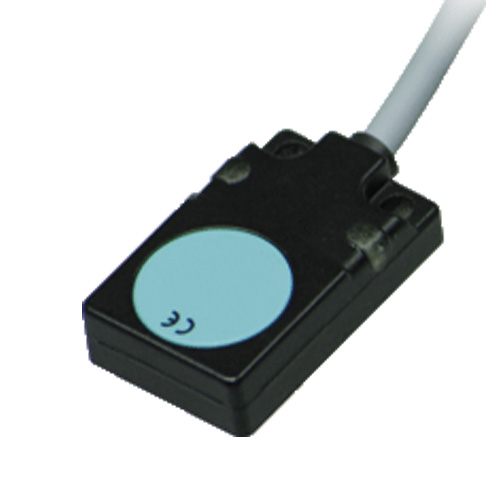

CBN5-F104M-E2
Bảng thông số kỹ thuật của cảm biến CBN5-F104M-E2 Pepperl+Fuchs
| General specifications | ||
|---|---|---|
| Switching function | Normally open (NO) | |
| Output type | PNP | |
| Rated operating distance | 5 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Nominal ratings | ||
| Installation conditions | ||
| B | 0 mm | |
| C | 10 mm | |
| F | 20 mm | |
| Operating voltage | 10 … 30 V DC | |
| Switching frequency | 0 … 100 Hz | |
| Hysteresis | 2 … 20 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | ≤ 1.8 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | ≤ 0.1 mA | |
| No-load supply current | ≤ 15 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) | |
| Mechanical specifications | ||
| Connection type | cable PUR , 2 m | |
| Core cross-section | 0.25 mm2 | |
| Housing material | GD-Zn | |
| Sensing face | PA 12 | |
| Degree of protection | IP67 | |
Phân loại CBN5-F104M-E2
| System | Classcode |
|---|---|
| ECLASS 11.0 | 27270102 |
| ECLASS 10.0.1 | 27270102 |
| ECLASS 9.0 | 27270102 |
| ECLASS 8.0 | 27270102 |
| ECLASS 5.1 | 27270102 |
| ETIM 8.0 | EC002715 |
| ETIM 7.0 | EC002715 |
| ETIM 6.0 | EC002715 |
| ETIM 5.0 | EC002715 |
| UNSPSC 12.1 | 39121550 |
