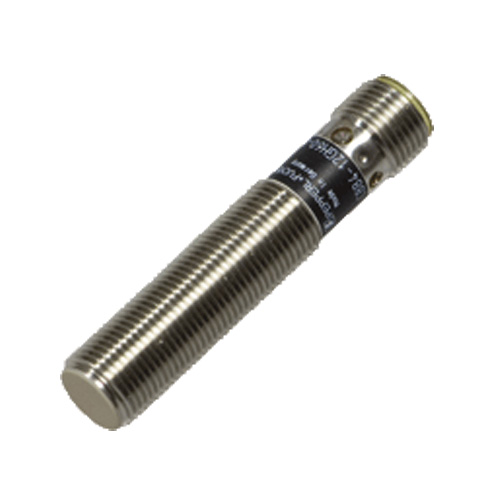

CBB4-12GH60-E0-V1
Datasheet excerpt: Technical data of CBB4-12GH60-E0-V1
| General specifications | ||
|---|---|---|
| Switching function | Normally open (NO) | |
| Output type | NPN | |
| Rated operating distance | 4 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 2.88 mm | |
| Nominal ratings | ||
| Installation conditions | ||
| A | 0 mm | |
| B | 0 mm | |
| C | 15 mm | |
| F | 15 mm | |
| Operating voltage | 10 … 36 V DC | |
| Switching frequency | 0 … 50 Hz | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | ≤ 2.5 V | |
| Operating current | 0 … 100 mA | |
| No-load supply current | ≤ 12 mA | |
| Switching state indicator | LED, yellow | |
| Indicators/operating means | ||
| Potentiometer | sensitivity adjustment | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | stainless steel 1.4404 / AISI 316L | |
| Sensing face | PEEK | |
| Housing diameter | 12 mm | |
| Degree of protection | IP65 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 11.0 | 27270102 |
| ECLASS 10.0.1 | 27270102 |
| ECLASS 9.0 | 27270102 |
| ECLASS 8.0 | 27270102 |
| ECLASS 5.1 | 27270102 |
| ETIM 8.0 | EC002715 |
| ETIM 7.0 | EC002715 |
| ETIM 6.0 | EC002715 |
| ETIM 5.0 | EC002715 |
| UNSPSC 12.1 | 39121550 |
