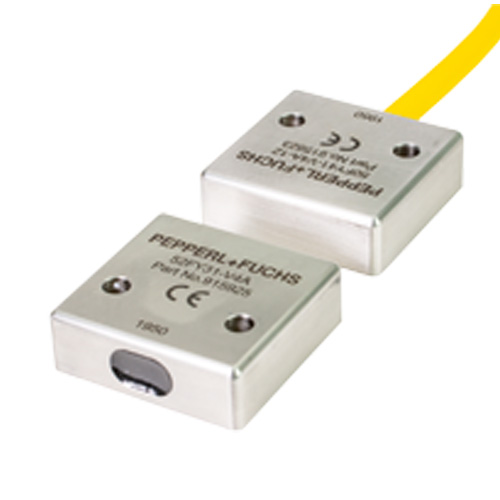

50FY41-V4A-12-KIT
Bảng thông số kỹ thuật của cảm biến 50FY41-V4A-12-KIT
| General specifications | ||
|---|---|---|
| Switching function | Normally open (NO) | |
| Output type | PNP/NPN | |
| Rated operating distance | 2.5 mm at 0 mm offset, 1.3 mm at 3.5 mm offset, 0 mm at 4.0 mm offset | |
| Installation | non-flush | |
| Output polarity | DC | |
| Output type | 4-wire | |
| Nominal ratings 50FY41-V4A-12-KIT | ||
| Operating voltage | 10 … 12 V | |
| Short-circuit protection | NO | |
| Voltage drop | 7 V @ 10 K load, 12 V supply | |
| Operating current | 0.5 mA | |
| Current consumption | 30 mA | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | IEC 60947-5-2:2012 IEC 60947-5-3:2013 IEC 61236-3-1:2008 |
|
| Approvals and certificates | ||
| CE conformity | 2014/30/EU | |
| UL approval | cULus Listed, General Purpose | |
| Ambient conditions | ||
| Ambient temperature | -40 … 100 °C (-40 … 212 °F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 3.5 m | |
| Core cross-section | 0.34 mm2 | |
| Housing material | 316 stainless steel | |
| Sensing face | 316 stainless steel | |
| Degree of protection | IP69K | |
| Note | Only approved for use with FYQLA1-140R-3 and KE5D2-6H/2R-S Use only with actuator 52FY31-V4A |
|
Phân loại 50FY41-V4A-12-KIT
| System | Classcode |
|---|---|
| ECLASS 11.0 | 27270104 |
| ECLASS 10.0.1 | 27270104 |
| ECLASS 9.0 | 27270104 |
| ECLASS 8.0 | 27270104 |
| ECLASS 5.1 | 27270104 |
| ETIM 8.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 5.0 | EC002544 |
| UNSPSC 12.1 | 39121550 |
Để biết thêm chi tiết, vui lòng liên hệ:0971.735.735 hoặc truy cập https://nsgmarine.com để được hỗ trợ.
