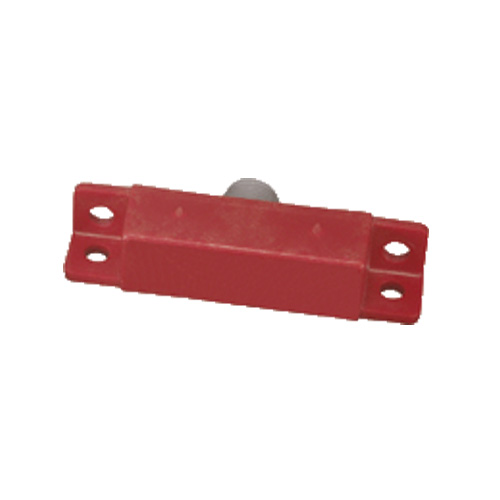

40FY26-33
Datasheet excerpt: Technical data of 40FY26-33
| General specifications | ||
|---|---|---|
| Switching function | Normally open (NO) | |
| Output type | PNP | |
| Rated operating distance | Use either 41FY1 – 6.4 – 15.2 mm or 41FY2 – 7.6 – 19 mm | |
| Installation | non-flush | |
| Output polarity | DC | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V DC | |
| Hysteresis | 5 … 25 % | |
| Short-circuit protection | yes | |
| Voltage drop | ≤ 2.5 V DC | |
| Repeat accuracy | +/- 3 % | |
| Operating current | ≤ 200 mA | |
| Off-state current | ≤ 30 mA | |
| No-load supply current | ≤ 40 mA | |
| Indicators/operating means | ||
| LED indicator | switching state | |
| Electrical specifications | ||
| Electrical rating | 10 – 30 V DC | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| Ambient conditions | ||
| Ambient temperature | -30 … 85 °C (-22 … 185 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | Polycarbonate | |
| Sensing face | Polycarbonate | |
| Housing diameter | ||
| Degree of protection | IP67 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 11.0 | 27270104 |
| ECLASS 10.0.1 | 27270104 |
| ECLASS 9.0 | 27270104 |
| ECLASS 8.0 | 27270104 |
| ECLASS 5.1 | 27270104 |
| ETIM 8.0 | EC002544 |
| ETIM 7.0 | EC002544 |
| ETIM 6.0 | EC002544 |
| ETIM 5.0 | EC002544 |
| UNSPSC 12.1 | 39121550 |
